Your car tells you when fuel is low, but have you thought about how it knows when the tank pressure inside isn’t normal? One small part handles that job every second you drive. That part is the fuel tank pressure sensor. It measures the fuel tank pressure and conveys data to the engine control unit (ECU).
The ECU examines leakage and other problems in the system based on the provided data. The control unit turns on the check engine light on your dashboard in case it detects any issues with the fuel tank. The sensor is also an important part of the evaporative emissions control system (EVAP). The EVAP system can detect even small leaks with the help of pressure sensors.
Fleet companies benefit greatly from this sensor. It helps monitor fuel system health and prevents vapor leaks that may cause downtime or fuel loss. Businesses using mobile fuel delivery or a fleet fueling service depend on properly serviced sensors to maintain vehicle fuel safety and efficiency across multiple routes.
This article explains the role of the fuel tank pressure sensor, its importance, and common issues such as fault codes P0452 to P0454. It helps fleet managers and maintenance leads understand the sensor’s part in emission control and fuel system safety. We will guide readers about Fuel Logic’s mobile fueling and inspection service for reliable fleet support. Let’s dig into it in detail!

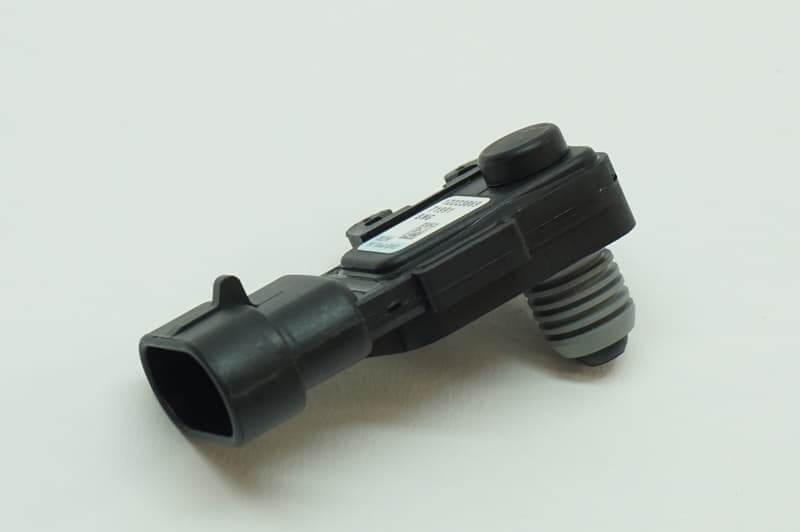

What Is a Fuel Tank Pressure Sensor?
A fuel tank pressure sensor is a component of a vehicle’s EVAP system that measures pressure changes inside the tank, informing the Engine Control Module (ECM). The ECM tracks vapor levels and detects leaks, triggering warning lights for fuel leakage or a sensor detects a problem.
How Does the Fuel Tank Pressure Sensor Work?

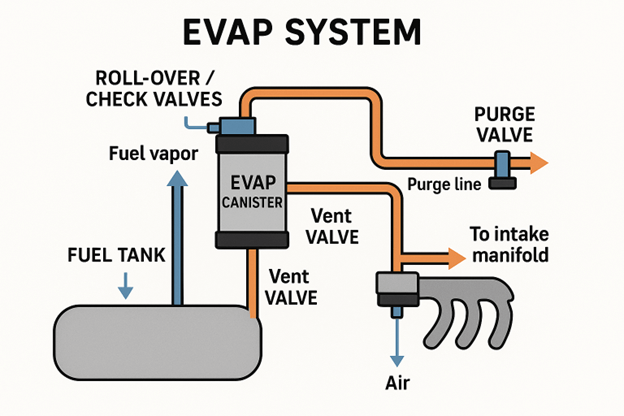

Automakers started using the advanced EVAP system after 1996 to meet emission standards. The FTP sensor in the EVAP system monitors changes in air pressure or vacuum levels during fuel use or vapor buildup inside the tank. It converts these changes into electrical signals and sends them to the ECM.
The engine control module then compares this data to expected values. It records a malfunction if the pressure goes higher or lower than the normal range.
Importance of the Fuel Tank Pressure Sensor
A fuel tank pressure sensor provides accurate readings to enhance the vehicle’s fuel system, helping ensure compliance with emission standards. If the sensor detects leaks or pressure issues, it may trigger trouble codes during inspections.
A properly functioning FTP sensor is essential for vehicles to maintain fuel efficiency and pass emissions tests. Regular inspections and maintenance at a shop can help fix or replace faulty sensors, preventing increased emissions and ensuring optimal performance.
Symptoms of a Faulty Fuel Tank Pressure Sensor
You must recognize the signs of a bad fuel tank pressure sensor to prevent issues in the engine and control emissions. Here are some common symptoms that you must consider:
1. Check Engine Light
The FTP sensor measures and sends fuel tank pressure readings to the engine control unit. The ECU alerts the driver by turning on the warning light. It occurs when the reading falls outside the normal range.
P0452, P0453, and P0454 are the fault codes that may also appear during a scan. These codes indicate fuel pressure problems in the tank.
2. Fuel Odors
The sensor’s role is to detect pressure changes and help the system trap vapors inside the tank. Vapors leak through the vent lines or seals instead of being contained due to a faulty fuel tank pressure sensor. This creates a strong fuel smell near the back of the vehicle or after parking.
3. Poor Fuel Economy
The ECU manages the air-fuel ratio and vapor flow, adjusting fuel injection based on readings from the fuel tank pressure sensor. A faulty sensor can fail to recover fuel vapors properly, leading to increased emissions and decreased fuel efficiency in fleet vehicles, including trucks.
4. Difficulty Starting
The engine control unit also adjusts the air-fuel mix using signals from the FTP sensor. A faulty sensor disrupts this mixing ratio, causing the engine to receive either too much or too little fuel during ignition. The engine takes multiple attempts to start because of the mismatched results.
Diagnosing and Replacing a Faulty Sensor
Let’s elaborate on how you can diagnose and replace a faulty sensor:
● Diagnosis of a Faulty FTP Sensor
You can check a fuel tank pressure sensor when the engine shows signs of trouble. You can check for problems by reading Diagnostic Trouble Codes (DTCs) from P0450 to P0454. Use a digital multimeter to test the sensor circuits.
You must also check the sensor’s connector and wiring. Each connector has three pins. These three wires provide the sensor with power, a ground, and a signal circuit.
A perfect reference voltage shows the reading near 5 volts. A change in the voltage may be due to a loose or damaged connection. You can tighten the loose connection or replace the wire. Besides this, use a 12-volt lamp to test if the ground conducts electricity.
● Replacement of a Faulty FTP Sensor
Some cars have a panel under the rear seat or trunk floor. You may also have to remove the fuel tank to access the FTP sensor in some vehicles. Sensors placed remotely may also require you to remove the inner fender in the rear wheel area.
Relieve pressure in the fuel system before starting the sensor replacement process. You can release pressure from the fuel system through the Schrader valve on the rail. However, you must not touch the sensor before touching the negative terminal of the battery.
After that, unplug the wiring connector from the sensors. These are present on the fuel pump or tank. Make sure to remove all the bolts, nuts, or clips that are holding the sensor. Then, you can easily pull the sensor out of the sealing grommet.
Maintenance Tips for Optimal Sensor Performance
A healthy sensor delivers accurate readings, stops fuel vapor leaks, and prevents unnecessary check engine alerts. These are some of the best maintenance tips that can help improve the working capability of FTP sensors:
● Regular Checks
The sensors get damaged due to corrosion and may also loosen with the passage of time. It can affect the working efficiency of these sensors. Therefore, you must examine the fuel tank pressure sensors on a regular basis.
Regular checks will enable you to prevent inaccurate readings and reduce unexpected engine alerts. You can also include fuel injector cleaning in routine maintenance to make sure the sensors show perfect readings.
● Proper Refueling Practices
You should correctly refuel your vehicles to protect the fuel tank pressure sensor. Excess fuel can flood the sensor and cause inaccurate readings, so you must also avoid overfilling the tanks. Above all, use the pump gently to prevent pressure spikes and ensure the gas cap is secure.
● Professional Servicing
Experienced mechanics can easily test the sensor and detect hidden issues. Therefore, you must hire or visit qualified technicians for professional fuel system servicing and maintenance. This ensures the safety of your vehicle’s fuel system.
⚡ Key Takeaways
- The fuel tank pressure (FTP) sensor measures the pressure inside the fuel tank and reports it to the engine control unit (ECU) to detect leaks and maintain EVAP system integrity.
- A faulty FTP sensor can trigger the check engine light, cause fuel odors, reduce fuel economy, and make vehicles harder to start.
- Regular diagnosis and maintenance—including checking fault codes (P0450–P0454), inspecting wiring, and cleaning connectors—helps prevent system failures and emissions issues.
- Fleet managers rely on properly functioning sensors to reduce downtime, prevent vapor loss, and ensure environmental compliance across multiple vehicles.
- Fuel Logic supports fleets with expert mobile fueling and inspection services to keep fuel systems safe, efficient, and compliant.
FAQs (Frequently Asked Questions)
Can I drive with a faulty fuel tank pressure sensor?
You can drive with a faulty fuel tank pressure sensor, but it is not safe for your vehicle’s health. The car may show a check engine light, increase fuel consumption, and fail emission checks. A faulty sensor can also cause fuel leaks and other fuel system problems. Therefore, it is best to repair or replace the sensor as soon as possible.
How much does it cost to replace the sensor?
Fuel tank pressure sensor replacement charges differ based on the vehicle model and service provider. The overall price can be approximately up to $330. This includes $158 as the cost of parts and $170 in labor charges.
Will a faulty sensor cause my vehicle to fail an emissions test?
Yes, your vehicle can probably fail an emissions test due to a faulty fuel tank pressure sensor. The sensor monitors fuel pressure and detects vapor leaks. If it provides wrong data, the system may not control emissions properly, causing a test failure.
